Lindberg/Blue M Box Furnace 16.3L Print this pagePrint this page

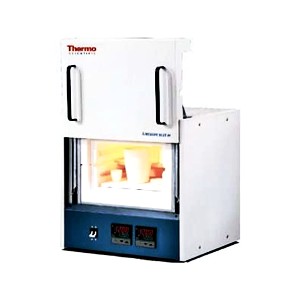

Lindberg/Blue M Box Furnace 16.3L
Price: On Request

Highlights:

> Superior temperature uniformity and exceptional reliability with PID control
> Feature latest technical advances in heating elements, insulation and temperature control, all integrated into a self-contained cabinet
> Simultaneously view setpoint and actual temperature
> Safety door switch and adjustable high limit over-temperature protection


Description
Patented heating elements combined with the Moldatherm fiber insulation and double-walled construction ensure optimum temperature efficiency, fast response, quick heat-up, and rapid cool-down. It features PID temperature control with single-setpoint, programmable 16-segment, or programmable 300 segment control. Digital overtemperature control on select models protects furnace and load from primary control circuit failure. If high limit is reached, it overrides the main controller and shuts off power to furnace.

Specification
Specification
Capacity 16.4 Litre
Temperature Range 100 to 1200°C
Temp Uniformity ±1°C at 100°C
Rise Time 20 min to 1200°C
Power Ouput 4500 Watts
Interior Dimimensions 7" H x 13" W x 11" D
Exterior Dimensions 27" H x 24" W x 23" D
